Sheet Metal Hazards: Machines, Edges, Fumes, Heights

This trade hurts people in four distinct ways, and each one has its own OSHA topic behind it. Powered machines catch hands. Cut sheet metal opens skin. Welding and brazing put metal fume, ultraviolet light and current where your lungs, eyes and body are. And hanging duct is work at height. Learn the four as four, because the control for each is different and the one you skip is the one that gets you.

Why it matters on the job

The hazards move with the material. A single piece of duct passes through all four exposures on its way from a flat sheet to a hanger, and it does so within a shift. A shop safety habit does not protect you on a lift, and a jobsite harness does nothing at the brake. You need all four sets of controls, and you need to know which one you are standing in right now.

Powered machines: shears, brakes, rolls

OSHA treats machine guarding as two separate problems on the same machine.

The point of operation is where the machine acts on the material: the shear blade closing, the press brake ram descending, the rolls drawing metal in. This is where the amputation happens, and it is the guard people are tempted to defeat because it is in the way of the work.

Power transmission is everything that drives the machine: shafts, belts, pulleys, gears, flywheels. These injure people who are nowhere near the work, which is exactly why the guards over them get forgotten.

Both must be guarded. A machine with a perfect point-of-operation guard and an open drive belt is not a guarded machine.

Cut sheet: the everyday injury

Lacerations are the injury you will actually experience, most likely in the first month. Sheared edges are burrs, corners are points, and a large sheet flexes while you carry it. OSHA’s coverage here sits under hand and power tools rather than under a sheet-metal-specific rule, because the controls are generic: the right glove for the task, the right tool for the cut, edges deburred before the next person handles the part, and a carry method that keeps the sheet under control rather than balanced.

The reason this hazard is worth naming separately is that it is normalized. A trade that treats cuts as part of the job stops counting them, and the one that goes through a tendon looks exactly like the hundred that did not.

Welding, cutting and brazing

Joining metal creates four exposures at once: metal fume in the breathing zone, ultraviolet radiation from the arc, burns from hot metal and sparks, and electric shock from the equipment. Eye damage from arc flash is the one that surprises new people, because it does not hurt at the time.

Ventilation and respiratory protection address the fume. Shading, screens and correct lens selection address the radiation. Clothing, gloves and housekeeping address the burns and the fire. Equipment condition and dry conditions address the shock. Four exposures, four different controls, none of which substitutes for another.

Duct hanging is work at height

Setting duct means lifts, ladders, scaffolds and open leading edges. It counts as work at height and it is governed by OSHA fall protection, not by any rule specific to sheet metal.

The trigger height and the permitted protection depend on which OSHA standard covers your work, and construction and general industry are not written the same way. Read the requirement for the standard that covers your jobsite rather than carrying a number between sites. What is constant is the sequence: eliminate the exposure if the work can be done at ground level, then protect it with a guarded surface, and only then arrest a fall with a personal system.

Walk one fitting through the four

Take a single rectangular transition, fabricated in the shop and installed above a corridor ceiling.

1. Shear the blank. Point of operation and power transmission both guarded, hands and body clear, nobody reaching behind the machine.
2. Brake the bends. Same two guarding questions, plus a part large enough to need a second person, which means the second person’s hands are now in the hazard too.
3. Handle and deburr. Edges are live from the moment the shear opens until the burr is off. This is the laceration window and it is the longest of the four.
4. Braze or weld the seam. Fume extraction on, screen up, eyes covered, nothing combustible within reach of the sparks.
5. Hang it. Now you are on a lift or a scaffold with a part that is awkward, and the exposure has changed from your hands to your whole body falling.

One part, one shift, four hazard families, in that order. That sequence is the reason this lesson exists as one lesson rather than four.

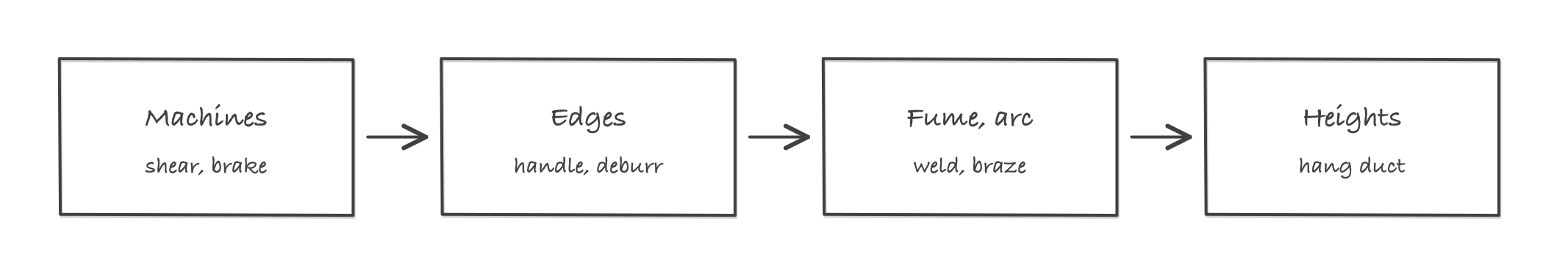

The same part passes through all four hazard families before it is installed

Where it bites

• The guard you defeat is the one that was in the way. Point-of-operation guards get removed because they slow the work. That is not a sign the guard is wrong; it is the definition of the guard doing its job.
• Power transmission guards protect bystanders. Sweeping near an unguarded drive belt is a machine injury even though nobody was running the machine.
• Arc flash to the eyes is delayed. The pain arrives hours later, which trains people to believe a brief unshielded look was harmless. It was not.
• Gloves are task-specific. The cut-resistant glove that saves your hand on a sheared edge is the wrong glove near rotating machinery, where a glove can be drawn in. Match the glove to the hazard in front of you, not to the shift.
• A lift is not a substitute for fall protection. Being in a basket changes the exposure; it does not remove it, and the requirement still comes from the fall protection standard covering your work.
